Toyota 1GR-FE Guide – Everything You Need To Know

We compare Toyota’s 1GR-FE to other engines, assess its reliability and tuning potential, and dive into the key facts about this surprising powerplant.

A Brief History Of The 1GR-FE

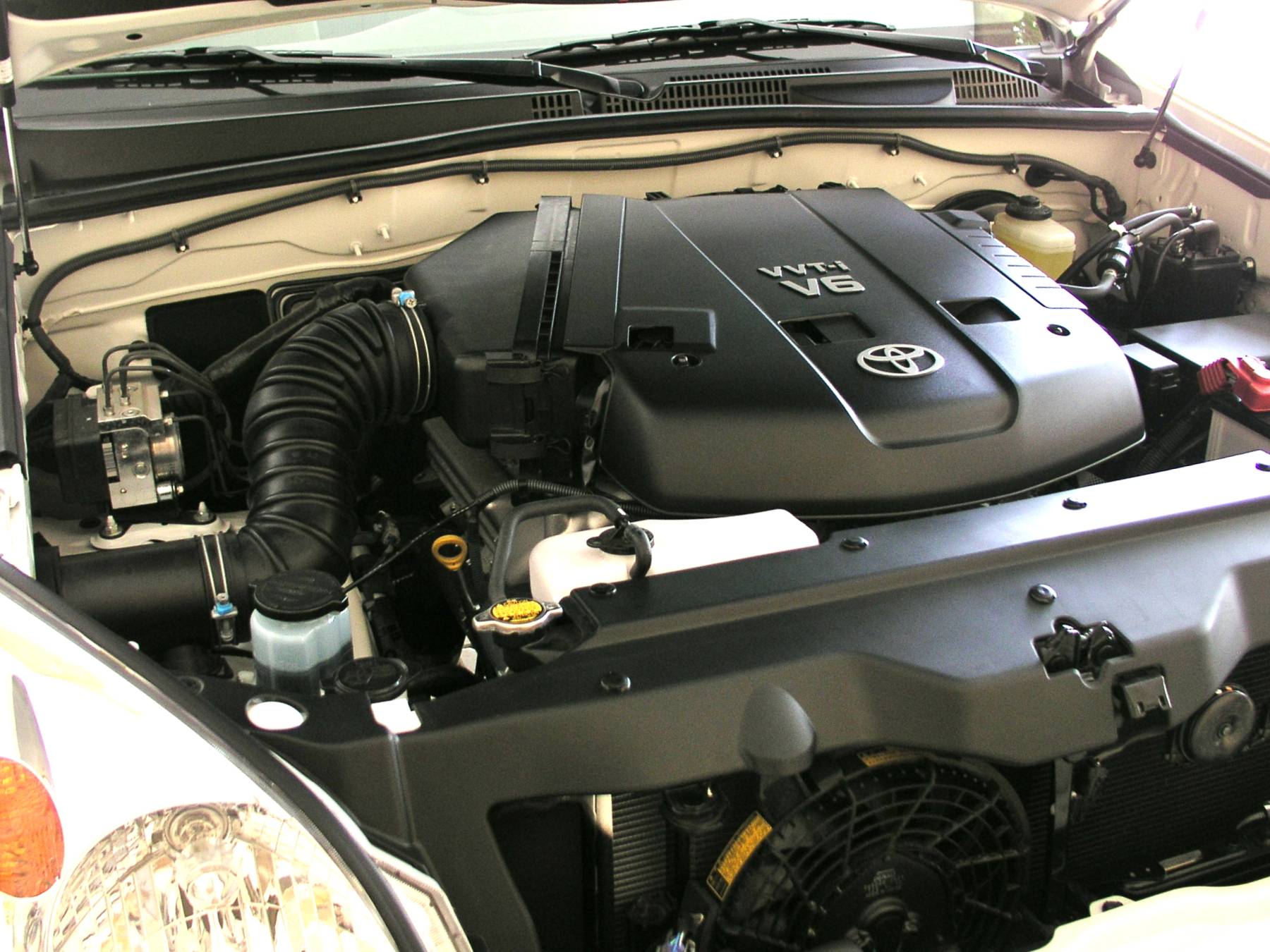

Toyota’s 1GR-FE is a 4.0-liter V6 gasoline engine that debuted in 2002. It first appeared in the Toyota 4Runner, Hilux Surf, and Land Cruiser Prado, developed as a replacement for the older 3.4-liter 5VZ-FE to meet increasing power, efficiency, and emissions compliance demands.

The 1GR-FE quickly gained a reputation for its robust design and versatility, finding its way into many Toyota and Lexus vehicles up to the present day. The stock engine produces between 237 and 267 horsepower in its various iterations, making it a capable powerplant for a wide range of applications.

Its aluminum block, cast iron cylinder liners, and forged steel crankshaft combine a lightweight design with heavy-duty durability. The longitudinal mounting makes it suitable for use in both RWD and AWD vehicles.

After it proved itself on the market, Toyota integrated it into more of its truck/SUV lineup, including the Tacoma, FJ Cruiser, and various Land Cruiser models.

In the following years, it gained significant updates, notably introducing Toyota’s Dual VVT-i (Variable Valve Timing with intelligence) in 2009, improving performance and efficiency. Whether in its original or updated form, the 1GR-FE earned a reputation as a capable and versatile powerplant, but it does have its share of known issues, which we’ll explore in detail later in this guide.

Despite the updates, Toyota still uses both engine versions today, with some minor alterations on the VVT-i engine, which continues to power the Toyota Hilux and Toyota Land Cruiser 70 in some markets. The later dual VVT-i variant is still available in the Toyota Fortuner and the Land Cruiser.

In this article, we’ll take a look at the engine’s specs, applications, strengths, weaknesses, and tuning potential. If you wish to skip to a specific section, please use the menu above.

1GR-FE Engine Specs

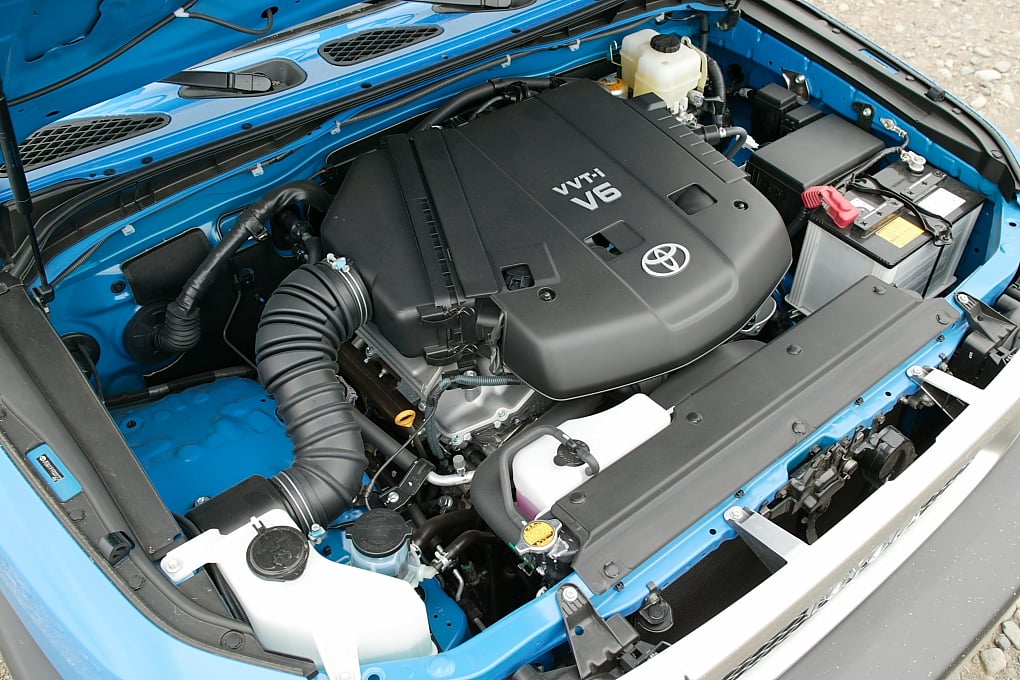

Toyota’s 1GR-FE is a 60-degree 4.0-liter V6 engine with a unique design that balances performance and durability. Its block is lightweight aluminum, and the cylinders have sturdy cast iron liners, providing strength and efficiency. The open-deck design features water passages between cylinders, which helps maintain consistent temperatures during operation.

There’s also a forged steel crankshaft and aluminum pistons with special coatings to reduce friction.  Toyota engineers the intake system and combustion chamber for optimal fuel delivery and burning, particularly in later versions with dual variable valve timing (Dual VVT-i). These design elements contribute to its reputation for reliability, making it a potential option for performance enthusiasts looking to increase their power output.

• Displacement: 3,956 cc (4.0L)
• Bore x Stroke: 94 mm × 95 mm (3.70 in × 3.74 in)
• Valvetrain: DOHC, four valves per cylinder

Early VVT-i (2002-Present day)

• Compression Ratio: 10.0:1
• Fuel System: Sequential multi-point fuel injection
• Power: 237-240 hp @ 5,200 rpm
• Torque: 266-278 lb-ft @ 3,800 rpm
• Features: VVT-i on intake camshaft only

Updated Dual VVT-i (2009-Present day)

• Compression Ratio: 10.4:1
• Fuel System: Sequential multi-point fuel injection
• Power Output: 267 hp @ 5,600 rpm
• Torque: 278 lb-ft @ 4,400 rpm
• Features: Dual VVT-i (intake and exhaust camshafts)

Notable updates

• 2009: Introduction of Dual VVT-i, redesigned cylinder heads, roller rocker arms with hydraulic lash adjusters.
• Toyota Racing Development (TRD) produced a supercharger kit for the 1GR-FE and offered it on the TRD models of the Toyota Tacoma, 4Runner, and FJ Cruiser but later discontinued it.

Which Cars Came With The 1GR-FE?

Toyota has used the engine in various markets worldwide from 2002 to the present day, including North America, Europe, Asia-Pacific, and the Middle East.

It’s worth noting that the exact years of availability may vary slightly depending on the specific market and model. Additionally, some of these vehicles received updated versions of the 1GR-FE over time, such as the Dual VVT-i version introduced in 2009.

Toyota vehicles with VVT-i (2002-Present day):

• Toyota 4Runner/Hilux Surf (GRN210/215) – 2002-2009
• Toyota Land Cruiser (GRJ200) – 2007-2011
• Toyota Land Cruiser Prado (GRJ120/121/125) – 2002-2009
• Toyota Tacoma (GRN225/245/250/265/270) – 2004-2015
• Toyota Hilux (GGN10/20) – 2005-2015
• Toyota Tundra (GSK30) – 2005-2006
• Toyota Tundra (GSK50/51) – 2006-2009
• Toyota Fortuner (GGN50/60) – 2005-2015
• Toyota FJ Cruiser (GSJ10/15) – 2006-2009
• Toyota Land Cruiser 70 – 2009-Present day
• Toyota Hilux – 2015-Present day

Toyota vehicles with Dual VVT-i (2009-Present day):

• Toyota 4Runner (GRN280/285) – 2009-2024
• Toyota FJ Cruiser – 2009-2022
• Toyota Tundra (GSK50/51) – 2011-2014
• Toyota Land Cruiser (GRJ200) – 2012-2021
• Toyota Land Cruiser Prado (GRJ150/150R/155) – 2009-2023
• Toyota Fortuner – 2015-Present day
• Toyota Land Cruiser (GRJ300) – 2021-Present day

Lexus vehicle with Dual VVT-i (2012-2023):

• Lexus GX 400 (GRJ150) – 2012-2023

How Does The 1GR-FE Compare To The 2GR-FE?

Despite the similarity in the names, Toyota’s 2GR-FE 3.5-liter V6 engine isn’t designed as a direct replacement for the 1GR-FE 4.0-liter V6. Instead, both engines coexisted in Toyota’s lineup, serving different purposes and vehicle applications.

While the 1GR-FE features a larger 4.0L displacement compared to the 2GR-FE’s 3.5L, the 2GR-FE has become a more popular choice for aftermarket tuning and drifting applications for several reasons:

Advanced design

The 2GR-FE featured more modern engineering, including Dual VVT-i (variable valve timing on both intake and exhaust camshafts) from the start, while it wasn’t integrated into the 1GR until 2009. The 1GR was engineered for durability and torque, making it more suitable for off-road and towing applications, while the 2GR prioritized power output and efficiency.

Stock power output

Despite its smaller displacement, the 2GR produces more power in stock form (up to 314 hp vs. 267 hp for the 1GR) thanks to its more efficient design, offering greater tuning potential.

Weight

The 2GR is approximately 3kg lighter than the 1GR, offering benefits for performance applications. This weight reduction improves the power-to-weight ratio, enhances handling by reducing front axle weight, and increases overall efficiency.

Rev limit

The 2GR’s higher rev limit compared to the 1GR provides several advantages for performance and drifting. It extends the power band, allowing the engine to produce power over a wider range of RPMs, resulting in higher peak horsepower. The higher redline improves throttle response, which is crucial for precise control in drifting and allows for more effective engine braking.

Availability

The 2GR is used in a broader range of vehicles, including performance-oriented models, making it more readily available and familiar to tuners.

Aftermarket support

Due to its popularity, the 2GR has more aftermarket parts and tuning options. The 2GR has proven to be an excellent choice for forced induction, with several off-the-shelf supercharger kits developed for it.

Mounting configuration

The 1GR was designed for longitudinal mounting in rear-wheel and four-wheel drive vehicles, while the 2GR was used in transverse applications for front-wheel and all-wheel drive vehicles.

Overall reliability

Both engines are highly reliable, but the 1GR is better for heavy-duty applications. With proper maintenance, both engines can last well over 200,000 miles. However, the 1GR has more significant potential issues (which we’ll explore shortly) than the 2GR’s relatively minor problems.

1GR-FE Upgrades and Tuning

Given its design, it should be no real surprise that the 1GR-FE isn’t typically known for its tuning potential, engine swaps, or drifting, with most opting for the 2GR-FE instead. However, it has shown surprising potential when pushed to its limits.

Although the aftermarket support for some popular drift engines is nowhere near as extensive, options are still available. Toyota Racing Development (TRD) once offered a bolt-on supercharger kit for the Tacoma and FJ Cruiser, boosting power to around 300 horsepower, but these will be difficult to obtain given their rarity.

Thankfully, you can still find aftermarket supercharger and turbocharger kits designed specifically for the 1GR-FE. Popular choices include the Magnuson Supercharger System at $6,395.00 and the Bullet/Rotrex Supercharger kit at $9,990.00. These can significantly increase power output alongside supporting modifications like upgraded fuel injectors, a high-flow fuel pump, and a custom ECU tune.

Other popular bolt-on upgrades include cold air intakes, headers, and full exhaust systems to improve breathing and overall performance.

While the 1GR-FE can handle moderate power increases with bolt-on modifications, pushing for high horsepower numbers requires careful planning and significant investment. However, with its strong bottom end, it can be a surprisingly capable platform if you’re willing to put in the effort, but it certainly won’t come cheap.

View this post on Instagram



A post shared by 具志健士郎.jp (@kengushi)

If you have the cash to splash, you’ll likely be surprised by the 1GR-FE’s maximum potential when built correctly. Ken Gushi showed off his GR86 build in Formula Drift US. Meanwhile, Japanese drifter Yoichi Imamura competed in the D1 Grand Prix series with a 986-horsepower 1GR-FE. We’ll take a deeper dive into these next.

1GR-FE Drift Cars

While the Toyota 1GR-FE engine isn’t typically associated with drifting, two notable pro drivers have showcased its potential in high-level competition, proving the capabilities of the truck-oriented V6, albeit with extensive modifications.

Ken Gushi’s 1,000 HP 1GR-FE Toyota GR86

Formula Drift pro driver Ken Gushi surprised the drift community by choosing the Toyota 1GR-FE from an FJ Cruiser for his latest GR86 build. Gushi opted for this engine over more common choices, such as the 2GR-FE, primarily for its displacement. The 4.0L V6 is the largest V6 that Toyota offers in the U.S., providing a solid foundation for his big-power goals.

The build features extensive modifications, including strengthened internals, custom engine management, and a sophisticated cooling system to handle the increased heat generated during drift competitions. When properly built, Gushi’s choice demonstrates the 1GR-FE’s ability to handle extreme power levels, but he does admit that it didn’t come easy, especially given the lack of off-the-shelf aftermarket options.

Gushi’s team implemented a custom twin-turbo setup, utilizing two Borg Warner turbos to force-feed the engine. This setup and an anti-lag system allow quick spooling and immediate power delivery.

What’s impressive about Gushi’s build is the amount of power they’ve extracted from the 1GR while maintaining reliability. Despite pushing the engine to produce around 1,000 horsepower, the build still utilizes stock camshafts, and Gushi is already prepping his next 1GR, which he intends to get up to 1,200 horsepower!

What Made Gushi Choose The 1GR-FE?

In the video, Gushi states: “Obviously, the 2J is extremely outdated. We want to try something different and challenging that’ll kind of hopefully get us through the next couple of years with parts that are still available through dealerships.” This ensures that his team can source parts more easily, potentially giving them an edge in long-term reliability and maintenance.

Moreover, the aluminum block of the 1GR-FE offers a significant weight advantage over iron-block engines like the 2JZ, making the front end of the car lighter and potentially improving handling characteristics.

Despite the benefits, one of the biggest challenges Gushi’s team faced was the lack of aftermarket support, which necessitated the creation of many custom parts from the ground up. A prime example is the intake plenum, designed to handle an impressive 30 psi of boost pressure.

Gushi’s build demonstrates that with enough engineering skill and creativity, even an engine primarily designed for trucks and SUVs can be transformed into a competitive drift powerplant. It’s also helped put the 1GR-FE back on the map.

Yoichi Imamura’s 986 HP 1GR-FE Toyota GT86

We’re unsure whether Gushi’s build was inspired by Yoichi Imamura’s earlier build, which he initially showcased in the 2016 Japanese D1 Grand Prix series, but there are certainly plenty of similarities.

One of the main differences with Imamura’s build is that the engine is stroked to 4.1 liters, increasing its displacement from the original 4.0 liters. Given his displacement focus, it’s surprising that Gushi didn’t opt for the same upgrade, even if he did manage to extract more power, but it may have come down to sponsorship restrictions.

CP pistons and Carrillo connecting rods are at the heart of Imamura’s build with TODA Racing camshafts. Two Garrett GTX3067R turbochargers force-feed the engine, resulting in another bonkers output of 986 horsepower (1,000 PS).

The engine runs on Sunoco 260 GT Plus fuel, a high-octane racing fuel rated at 104 octane (110 RON). This specialized fuel allows more aggressive tuning and helps prevent detonation under the extreme boost pressures required to generate such high power figures.

Power transfer is handled by a Quaife six-speed sequential transmission paired with an Ogura Racing Clutch 1000F. This drivetrain setup is designed to handle the engine’s massive torque output while providing the quick shifts necessary in competitive drifting.

Both builds demonstrate the 1GR-FE’s potential when taken to the extreme. While it’s far removed from its humble origins as a truck engine, it showcases the strength of Toyota’s design. Combined with Toyota’s reputation for reliability, you may think that the 1GR is flawless, but that’s unfortunately not the case, which we’ll explore next.

1GR-FE Reliability & Common Issues

The 1GR-FE receives mixed reviews regarding its reliability. While many owners praise its durability, reporting 200,000+ miles without major issues, others express concerns about its suitability for work trucks or large family SUVs. We’ve found that reliability can vary significantly based on maintenance history and usage patterns.

Generally, it’s considered more reliable than the 3.5L 2GR-FE, but potential buyers should be aware of common issues, especially in higher-mileage vehicles. Here are some of the most common problems that should be considered.

Head Gasket Failure

A significant concern is potential head gasket failure, typically occurring around 150,000 miles. While not as widespread as in some other Toyota engines, it remains a notable issue. Symptoms include coolant loss, overheating, and white exhaust smoke.

Repair costs for head gasket replacement typically range from $1,500 to $2,500. This repair, while expensive, is often worthwhile given the engine’s overall longevity potential.

Water Pump

The water pump is a known weak point in the 1GR-FE, typically lasting only 40,000 to 60,000 miles. Many owners report failures within this range, making it a common maintenance item.

Replacement costs usually fall between $500 and $800. Due to its critical role in preventing overheating, many mechanics recommend preventative replacement around 50,000 miles. Attention to cooling system issues is crucial to avoid more severe and costly engine damage.

Engine Block Thin Walls

A unique aspect of the 1GR-FE is its engine block with thin, cast-in cylinder liners. While contributing to lighter weight, this design makes it impossible to rebore the cylinders. The entire engine block may need replacement if a cylinder wall becomes damaged or excessively worn.

A used engine typically costs between $2,000 and $4,000, not including labor for installation. This limitation is particularly relevant for engines approaching or exceeding 200,000 miles.

Oil Consumption

Some owners report increased oil consumption as the 1GR ages, particularly past 100,000 miles. The severity varies; some maintain good oil levels, while others require frequent top-ups between changes.

In severe cases, piston ring replacement may be necessary, costing between $2,000 and $4,000. Regular oil level checks and using high-quality oil can help mitigate this issue. If oil consumption becomes excessive, it’s crucial to address it promptly to prevent more severe engine damage.

Timing Chain Tensioner

While the 1GR-FE uses a timing chain, which is generally more durable than a belt, the chain tensioner can fail in high-mileage engines, typically beyond 150,000 miles. Failure symptoms include timing chain noise and potential engine damage if left unaddressed.

Some owners recommend preventative replacement around 150,000 miles, with repair costs ranging from $800 to $1,500. Regular oil changes with high-quality oil can help prolong the life of the timing chain and tensioner.

Ignition Coils

Early VVT-i versions (pre-2009) of the 1GR-FE were prone to ignition coil failures, leading to misfires and rough running, but the issue is less common with the later Dual VVT-i engines.

Replacement costs range from $50 to $100 per coil. For owners of early models, it is advisable to keep spare coils on hand and be prepared for occasional replacements. Regular inspection of ignition coils during routine maintenance can help prevent unexpected failures.

Maintenance Recommendations

We recommend keeping on top of proper maintenance, which has proven crucial for the 1GR’s longevity. Here’s what we would do to ensure a healthy 1GR-FE capable of exceeding 200,000 miles.

• Regular oil changes every 5,000 to 7,500 miles using high-quality oil
• Attentive coolant system maintenance, including radiator inspection
• Preventative water pump replacement around 60,000 miles
• Regular inspection of ignition coils and spark plugs

Many owners have proven that the 1GR-FE can surpass 200,000 miles with proper care. However, this milestone often marks a point where major components may begin to wear out. After 200,000 miles, the risk of needing significant repairs or engine replacement increases.

Conclusion

From its origins as a reliable workhorse in Toyota’s trucks and SUVs to its surprising appearances in the world of professional drifting, the 1GR-FE has proven to be surprisingly versatile.

While it’s unlikely to be the first choice for performance enthusiasts compared to its flashier sibling, the 2GR-FE, the 1GR has some serious potential when pushed to its limits. Just ask Ken Gushi or Yoichi Imamura!

The 1GR-FE isn’t without its quirks, and the head gasket and water pump issues will concern many potential owners. However, regular maintenance is key if you’re looking to join the 200,000-mile club, and with proper preventive maintenance, we’re confident that it’ll treat you well. However, if you’re known for not liking to service your vehicles, perhaps consider alternatives that need less attention.

For those of you considering modding the 1GR-FE, there are options out there, from bolt-on supercharger kits to custom twin-turbo setups. However, be warned that the aftermarket scene is nowhere near as significant as some of the more common options. Be prepared to open your wallet and maybe learn a thing or two about fabrication!

Whether you’re planning on cruising in your stock Tacoma or dreaming of building the next tire-shredding drift sensation, the 1GR has proven to be a solid, capable engine. It might not be the easiest or cheapest path to big power, but it’ll certainly help your build stand out.
